ABHR learns about the latest trends in elevator buckets, and how 4B goes further than just mechanical design.
Bucket elevators are one of the most efficient methods of vertical transport, but as throughput demands rise, the need for smarter, better-engineered systems is growing.
For 4B Australia, that evolution has long been central to its business.
Part of the international 4B Braime group, the company traces its origins back more than 130 years to the UK, where it began as an engineering manufacturer before developing what became one of the industry’s first seamless steel elevator buckets. Today, 4B is recognised globally for its range of bucket elevator and conveyor components, from buckets and belts through to advanced monitoring systems.
According to Paul Dennis, one of the company’s key strengths lies not only in the products themselves, but in the engineering support that surrounds them.
“We provide a technical support service for all of our products,” Dennis said.
That support has become increasingly important as bucket elevators continue to serve a broad range of industries, each with distinct operating conditions and material profiles.
“At a practical level, duty specification is a big part of it,” he said.
“Building anything is about the material.”
That seemingly simple point is crucial in bucket elevator design. A system handling free-flowing grain, for example, faces vastly different wear and performance demands compared with one conveying abrasive sand, glass or cementitious materials. The company offers one of the world’s largest selections of elevator buckets, with more than 400 sizes and styles across steel, stainless steel and multiple polymer materials, designed for applications spanning agriculture, mining and heavy industry.
For Dennis, selecting the right bucket geometry and material composition is where performance gains are won or lost.
“The selection of material for the right application is extremely important,” he said.
That includes not only the bucket design itself, but also the belting, bolts and overall system configuration.
Unlike conventional conveyors, where increasing speed often directly increases throughput, bucket elevators operate within far tighter engineering tolerances.
“If you change the speed of a bucket elevator, you’re changing the geometry of things,” Dennis said.
Because centrifugal discharge systems rely on a precise relationship between radius, speed and mass, even small changes can alter where material leaves the bucket and where it lands inside the head section.
That can have significant implications for efficiency, spillage and wear.
This engineering precision is one of the reasons bucket elevators continue to hold a critical place in bulk handling infrastructure.
“It’s one of the most efficient ways of vertically conveying material from A to B,” Dennis said. “If you wanted the most efficient way with the least amount of footprint to lift materials vertically, it’s a bucket elevator every time.”
That compact vertical footprint remains particularly valuable in industries where plant space is constrained or where facilities require high-capacity material movement over significant heights.
But increasingly, the discussion around elevator performance extends beyond mechanical design.
One of the strongest trends emerging across the sector is the growing use of condition monitoring and sensor technology.
Historically, monitoring systems in bucket elevators were heavily associated with hazard prevention, particularly in grain handling where dust explosion risks are well documented.
The company has long supplied hazard monitoring systems capable of detecting belt slip, misalignment, bearing temperature issues and plugged chutes.
Now, Dennis said, those systems are being adopted as reliability tools.
“It’s an emerging trend that people are becoming more adept to reliability and condition monitoring rather than it just being hazard focused,” he said.
This shift reflects a wider industry move toward predictive maintenance and continuous asset visibility.
Among the latest developments is a combined vibration and temperature sensing solution designed for pulley and shaft applications in both conveyors and bucket elevators.
Traditionally, large-scale systems often relied on periodic external vibration testing conducted by specialist technicians, sometimes only on an annual basis.
By contrast, permanently installed sensors allow operators to continuously monitor vibration signatures and temperature changes in real time. That capability can significantly improve maintenance planning and reduce the risk of unexpected downtime.
“It’s really ideal for shaft applications, which is what you would find on conveyor pulleys and bucket elevator pulleys,” Dennis said.
Importantly, 4B has focused on ease of installation, particularly for retrofit applications.
“The way we’ve designed most of our sensors and monitoring systems has been that it’s very plug and play or easy to retrofit into existing systems,” he says.
For existing plants looking to modernise legacy infrastructure without major redesign work, that retrofit capability could prove especially attractive.
Alongside monitoring technology, materials innovation is also shaping the next phase of bucket elevator development.
Dennis points to advances in composite materials as a major area of focus.

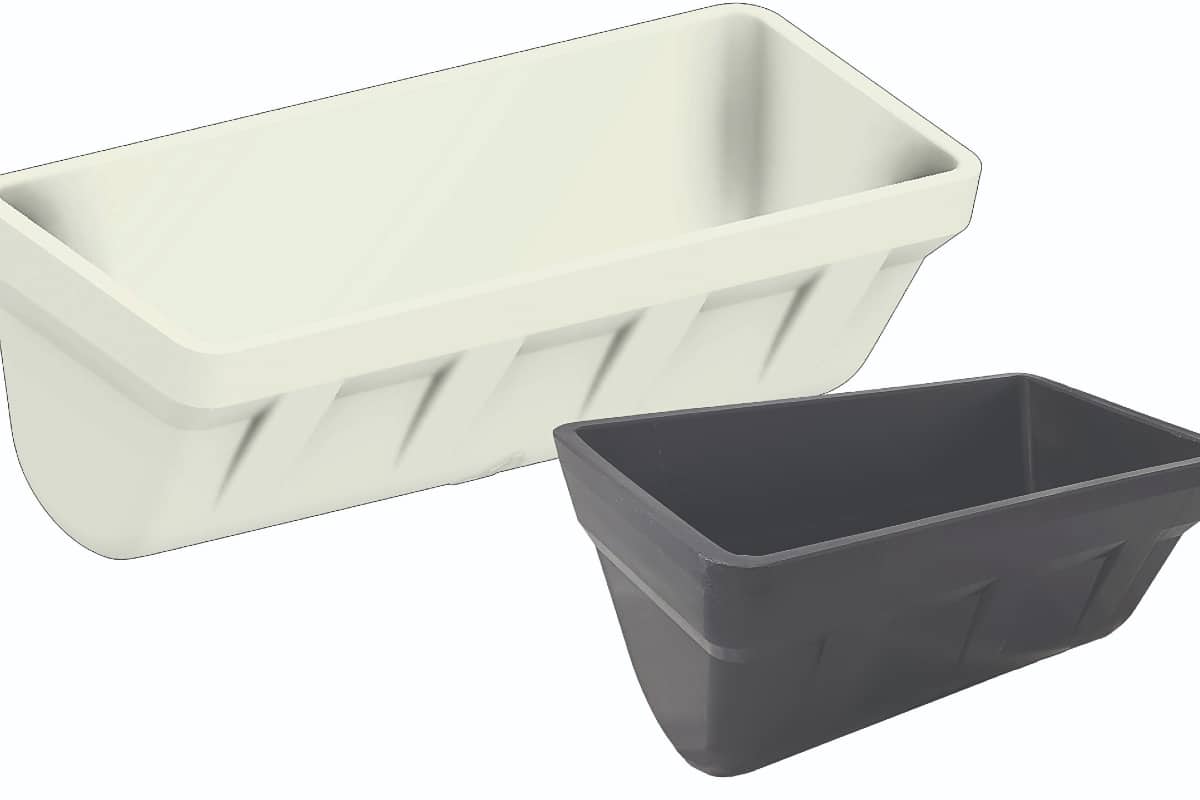

Among these is 4B’s Nylathane bucket range, engineered as a high-performance alternative to conventional nylon and fabricated steel designs. According to the company, the material offers improved abrasion resistance, high impact strength and significantly lower weight, while remaining suitable for heavy industrial applications including cement, aggregates and fertiliser.
“We were able to provide a product which actually had a greater amount of abrasion resistance for application,” Dennis said.
The lighter weight of composite buckets can also help reduce overall system load, while non-sparking and anti-static properties offer further operational and safety benefits in dust-sensitive environments.
This approach aligns with the company’s long-standing philosophy of continuous product improvement.
“One of the things that 4B has as a statement as to who we are is that the company uses the phrase ‘better by design’,” Dennis said.
“What we’re always looking to do is innovate on something that we already have to make it better.”
