TUNRA Bulk Solids technical director Bin Chen and founding director Alan Roberts detail the principles of designing reliable screw feeders.
Screw feeders play a critical role in bulk solids handling, particularly for materials with low cohesion, such as fine powders and granular products.
These feeders are designed to dispense material under controlled conditions at relatively low flow rates, making them indispensable in processes where precision and consistency are important. Their positive displacement mode of operation offers a significant advantage by providing reliable volumetric feed control.
Despite their widespread use, screw feeders present certain challenges. Their reliance on friction for material transport results in relatively low energy efficiency, and the rotary motion imparted to the bulk material can reduce volumetric efficiency. Additionally, abrasive materials can accelerate wear, while fine powders prone to flooding remain difficult to control under certain conditions. Nevertheless, screw feeders offer excellent dust containment due to their enclosed design, making them suitable for applications where environmental control is critical.
Flow property testing and mass flow hopper design
The design of a screw feeder cannot be considered in isolation – it is intrinsically linked to the hopper that supplies material to it. In most applications, the screw feeder and hopper function as an integrated unit, and their interaction determines the overall reliability of the system. While screw feeders can be fitted to conical hoppers, they are most commonly integrated with plane-flow hoppers, particularly where material must be withdrawn along slotted openings. The performance of these hoppers is critical to achieving reliable discharge and maintaining the controlled feeding function of the screw feeder. At TUNRA Bulk Solids, the design process begins with a comprehensive assessment of the material’s flow properties. These include the flow function, wall friction angle, internal friction angle, bulk density, and compressibility. Each of these parameters is determined through standardised laboratory testing, providing the data necessary to predict flow behaviour under real operating conditions.
The concept of mass flow underpins the hopper design for screw feeders. In a mass flow hopper, all material moves whenever any is withdrawn, eliminating stagnant zones and reducing the risk of segregation. This is achieved by selecting appropriate wall angles and surface finishes to ensure uniform flow toward the outlet. The conceptual design process applies these principles to define hopper geometry that guarantees mass flow even under the most challenging conditions.

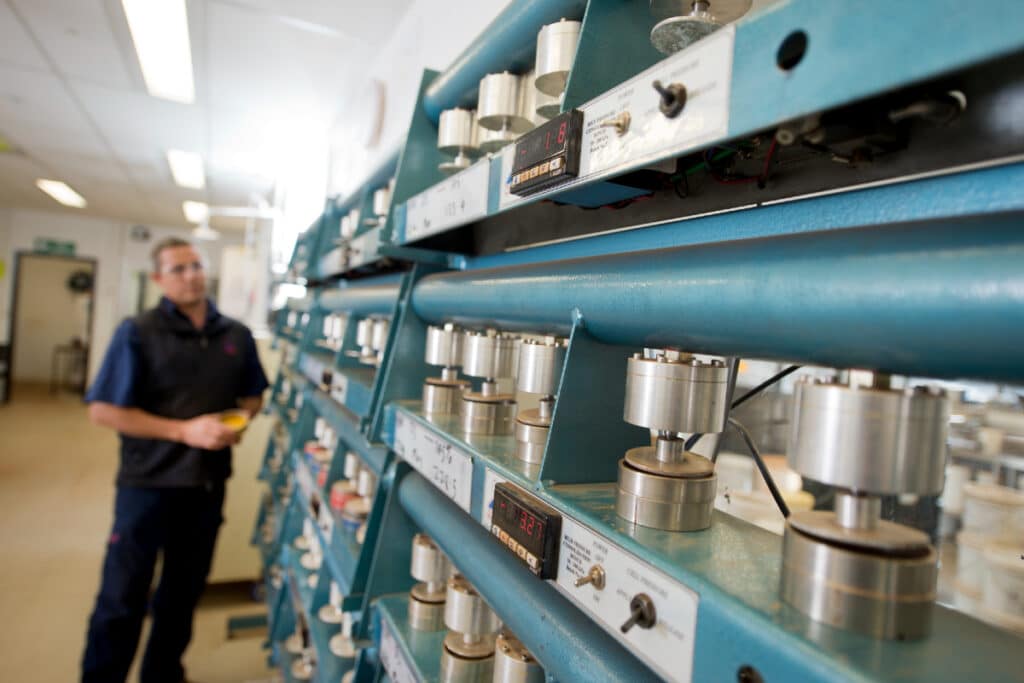

Moisture content is one of the most significant factors influencing flow behaviour. Higher moisture levels can increase cohesion, reduce flowability, and lead to problems such as arching or ratholing. To address this, worst-case moisture content testing is carried out, followed by detailed flow property measurements at that condition. This approach ensures that the hopper design remains robust under adverse circumstances. Wall and liner materials also play a vital role in promoting mass flow. Low-friction liners are commonly used to reduce wall friction and maintain consistent discharge. Extended storage periods may significantly increase the bulk strength of a material, which in turn may lead to serious flow problems during discharge. Understanding this effect is essential for reliable hopper and feeder design. Figure 1 shows the flow property testing rig – time storage bench, which is used to simulate undisturbed storage conditions. Testing under these conditions is critical to evaluate how prolonged storage impacts material flowability and to ensure that equipment is designed to handle worst-case scenarios.
Hopper draw-down pattern
A critical objective in screw feeder design is achieving uniform draw-down of material from the hopper. This ensures consistent discharge and prevents segregation or dead zones. A screw with constant pitch and constant diameter cannot accomplish this, as material is withdrawn primarily from the rear of the hopper in a funnel-flow pattern (Figure 2).
The reason is straightforward: the first pitch of the screw fills completely during one rotation, and as this material moves forward, subsequent pitches cannot draw additional material from the hopper. In effect, the screw behaves as a conveyor rather than a feeder. While a conveyor maintains constant capacity along its length, a feeder must provide variable, increasing capacity in the direction of feed.
Several design strategies have been proposed to achieve this progressive capacity increase, including stepped pitch, variable pitch, variable pitch combined with variable diameter, and variable shaft diameter.
However, not all configurations deliver ideal performance. For example, a screw with constant screw and shaft diameters but progressively increasing pitch improves flow compared to a constant-pitch design but may still tend to draw preferentially from the rear. This occurs because volumetric efficiency decreases as pitch expands toward the discharge end. The most effective solution combines an expanding pitch with a tapered shaft (Figure 3), which promotes uniform draw-down across the entire hopper length.
When selecting the minimum pitch, particularly for cohesive bulk solids, it is essential to ensure that the pitch is large enough to prevent arching or jamming within the screw flights. Flow property testing provides the necessary data to assess this risk. Designers should also consider that screw feeders incur high frictional losses and are susceptible to abrasive wear when handling harsh materials. Consequently, screws and shafts should be constructed from low-friction, wear-resistant materials.
The section of the screw extending beyond the hopper toward the outlet plays a key role in determining discharge per revolution. For effective control, this section should include a choke zone, maintaining the same radial clearance as the trough and extending for a minimum length. This prevents material from cascading over the flights and ensures accurate metering.
Screw Torque
The torque required to drive a screw feeder is governed by the forces acting on the screw blade. The torque acting over one pitch length can be expressed as:
where:
- σ_a= axial pressure
- R_i,R_o= inner and outer radii
- ϕ_s= screw surface friction angle
- α= helix angle of the screw
- r= radius
This integral is generally solved using numerical methods; however, for practical design purposes, an approximate solution is often adopted to simplify calculations while maintaining acceptable accuracy. Because screw geometry typically varies along its length, the overall torque must be determined by summing the contributions from each individual section. In addition to the torque generated by the screw flights, frictional resistance between the bulk material and the screw shaft also adds to the total torque. This shaft-related torque is calculated for each pitch segment and then combined with the blade torque to obtain the complete torque requirement for the feeder.
Case study
A recent project undertaken by TUNRA Bulk Solids involved the conceptual design of a mass flow hopper and multiple screw feeders for handling fine fertiliser material. The design process began with a comprehensive evaluation of the material’s flow characteristics under worst-case conditions. Initial testing focused on determining the maximum moisture content likely to occur during storage. This moisture level was then used for detailed flow property testing, including wall friction, internal friction, and flow function measurements. In addition, time storage testing was conducted to assess the effect of prolonged, undisturbed storage on bulk strength.
Using the measured flow properties, the hopper geometry was developed to ensure mass flow, eliminating stagnant zones and minimising segregation. The discharge arrangement from the hopper consists of four helical screw feeders, configured as two pairs of counter-rotating screws positioned on either side of a longitudinal triangular insert. This insert effectively divides the bin into two plane-flow lower hoppers, each with a slotted outlet sized to prevent the formation of cohesive arches based on the flow property results. To maintain fully active openings, the twin screws were designed with sufficient diameter to promote efficient discharge, and the hopper bottom was kept horizontal to ensure parallel outlet slots. The hopper half-angles have also been selected based on the material flow property results to ensure that mass flow conditions can be achieved.
To achieve uniform draw-down, the screw feeders were designed with geometry that provides progressively increasing capacity along the feed zone from the rear toward the discharge end. The system was engineered to deliver a total flow rate of 24t/h, with each screw handling six t/h. Figure 5 illustrates the hopper and screw feeder arrangement. Detailed calculations were performed to determine the torque and drive power requirements for each screw, ensuring robust and efficient operation.
Outcome of the case study
The final installation of the screw feeder met all design objectives, delivering the required capacity with exceptional reliability. Client feedback was overwhelmingly positive, highlighting the system’s performance during challenging conditions. They have experienced no issues with bridging or blockages in either the hopper or the screws. During a three-week winter shutdown, the hopper was left approximately 80% full. On restart, the screws cleared the material without any problems, demonstrating the robustness of the design.
This case study demonstrates the importance of rigorous flow property testing, worst-case scenario analysis, and careful integration of hopper and screw feeder design principles to achieve reliable bulk material handling.
Conclusion
Screw feeders are a critical component in bulk solids handling systems, particularly when fine powders and granular materials are handled, and controlled discharge is essential. Achieving reliable performance requires more than selecting the screw size of the feeder – it demands a holistic approach that integrates flow property testing, mass flow hopper design, and screw geometry optimisation.
The case study presented demonstrates the value of flow property testing and application of design principles. By applying mass flow principles and tailoring the screw geometry, the system achieved consistent discharge without bridging or blockages, even after extended storage periods. Torque and power calculations further ensured mechanical reliability. Accurate flow property data and sound design principles are essential to prevent flow issues and ensure reliable performance in industrial applications.
For operators and designers, investing in these steps upfront translates into long-term operational efficiency and reduced downtime.
