Features

Title	2020 DERNASEER DSP150 CYCLONE SANDWASHER
Type	Screening and Crushing
Sub Type	Screening - Crushing
Class	Sand Washing
Make	DERNASEER
Model	DSP150 CYCLONE SANDWASHER
Year	2020
Sale Price	POA
Listing Type	New
Stock Number	S2911
RefCode	TA921872
Capacity - tonnes/h	135
Chamber Type	Coarse
Length - mm	7055mm
Width - mm	2958mm
Height - mm	7187mm
Weight - kg	8000

Description

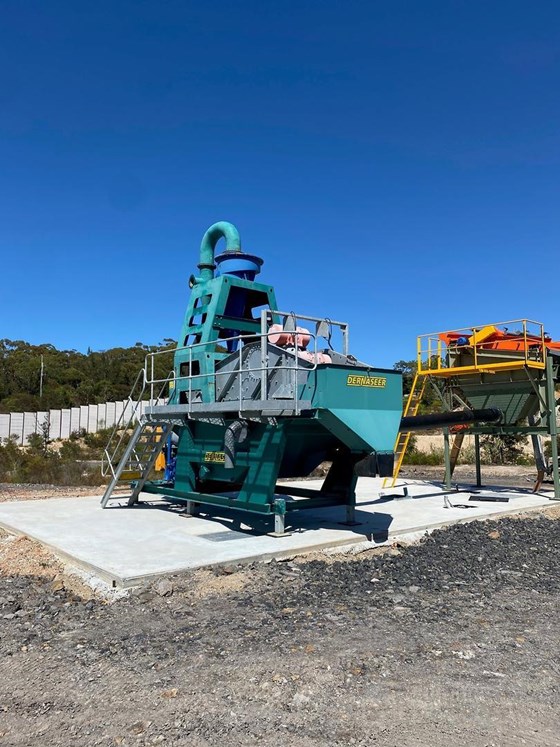

The DSP 150 Compact Cyclone Sandwasher is used to wash sand, recover maximum fines and dewater sand in a modular self-contained unit. One to two grades can be produced, which are treated to meet standards such as grain size, cleanliness, and consistency.

This maximises saleable product and produces higher quality outputs. The range is easy to operate and proves both energy and cost efficient for sand production.

FEATURES AND BENEFITS:

- The high quality of fines recovery
- Both energy and cost efficient
- Maximum recovery of material above 200 mesh
- Removes silt, slime and clays below
200 mesh
- Significant reduction in saleable
material sent to settling pond
- Dewatering to 10 - 15% of residual
water content

DIMENSIONS AND WEIGHT:

- Working length: 7055mm
- Working width: 2958 mm
- Working height: 7187mm
- Feed height: 2015mm
- Product Discharge Height: 1335mm
- Waste Water Discharge Height:
5071mm
- Weight: 8000kg

Output potential up to 135tph

SUMP TANK:

- Level stabilisation by floater valve
- Tank capacity - 5800L
- Feed flange, overflow pipe drain hatch,
pump intake connection pipe
- Skid mounted with an integrated base for
motor and pump

DEWATERING SCREEN

- Dewatering screen (L:3660MM
W:1545MM)
- Galvanised
- Reinforced Bolted Construction
- Dewatering area 5.5m2
- Modular polyurethane sieves 1mm standard opening
- 2 No. 7.5kW offset vibrating motors
- 8 No. High-efficiency marshmallow
rubber springs
- Splash protection over the rear of
dewatering screen
- Replaceable modular backsplash
panels

HYDROCYCLONE

- Rubber-lined 660mm diametre cyclone

PUMP

- Heavy-duty rubber lined slurry (150mm)
- IP 55 electric motor 45kW
- Rubber intake pipe with flexible connection sleeve
- Discharge pipe, reducer and elbow
-Flexible rubber pipe
