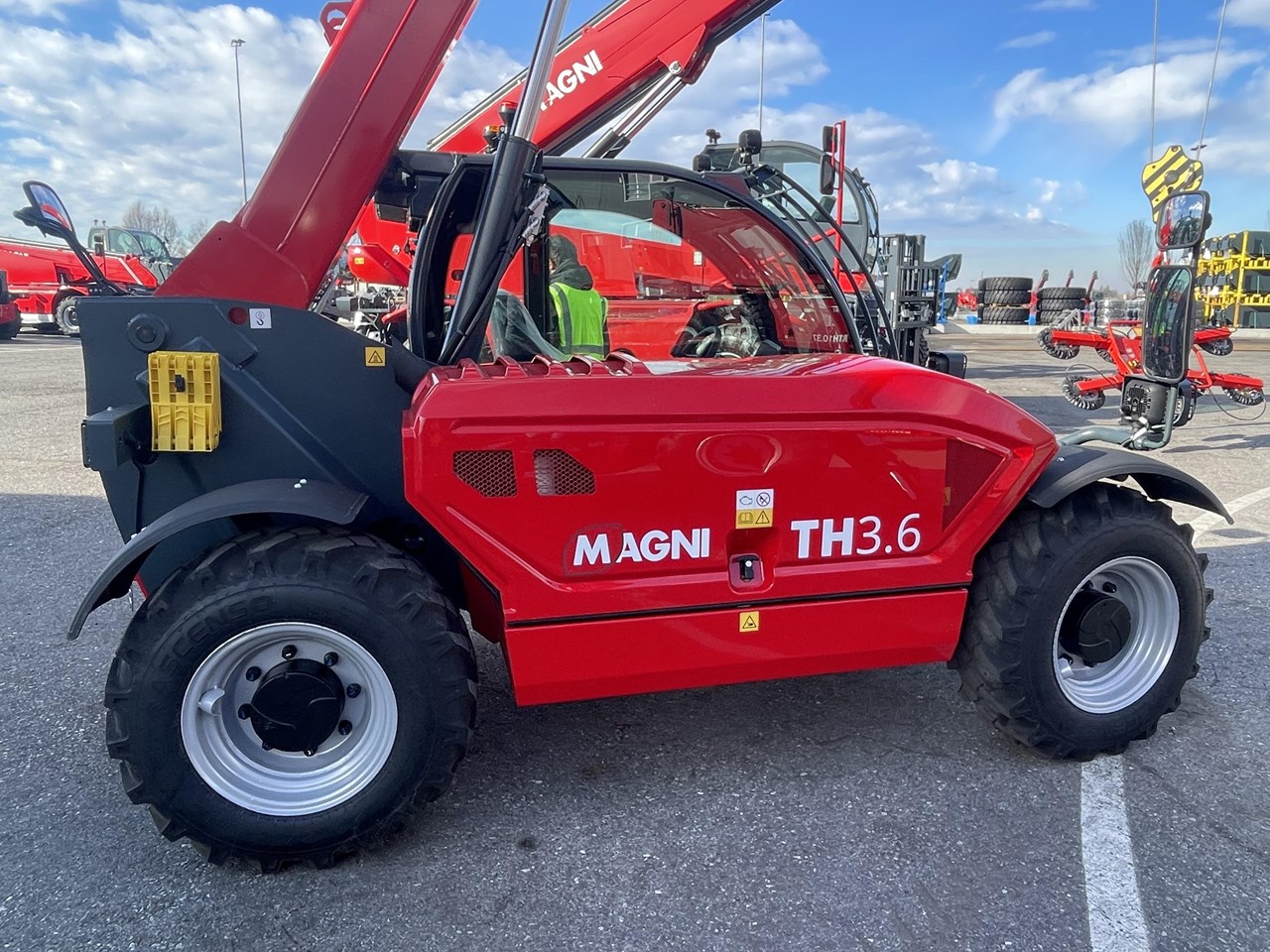

2025 MAGNI TH 3.6

With capacity of 3 tonnes and lifting height of 5.8 metres, the new TH 3.6 combines small size with impressive performance. In fact, the most compact fixed telescopic handler in the TH range, intended for the construction and logistics sectors and soon also for agriculture, is able to lift its maximum load to a height of 5.4 metres, 2,500 kg to the maximum height and 1,100 kg to a horizontal reach of more than 3 metres (10 feet). Its low-level design makes it ideal for tight spaces, while retaining optimal ground clearance for uneven terrains.

These characteristics, together with a Deutz Stage V engine of 75 kW give it a top speed of 35 km/h. The four-wheel drive and steering, with hydrostatic transmission, provide superlative stability and manoeuvrability with 3 steering modes: front, concentric and crab.

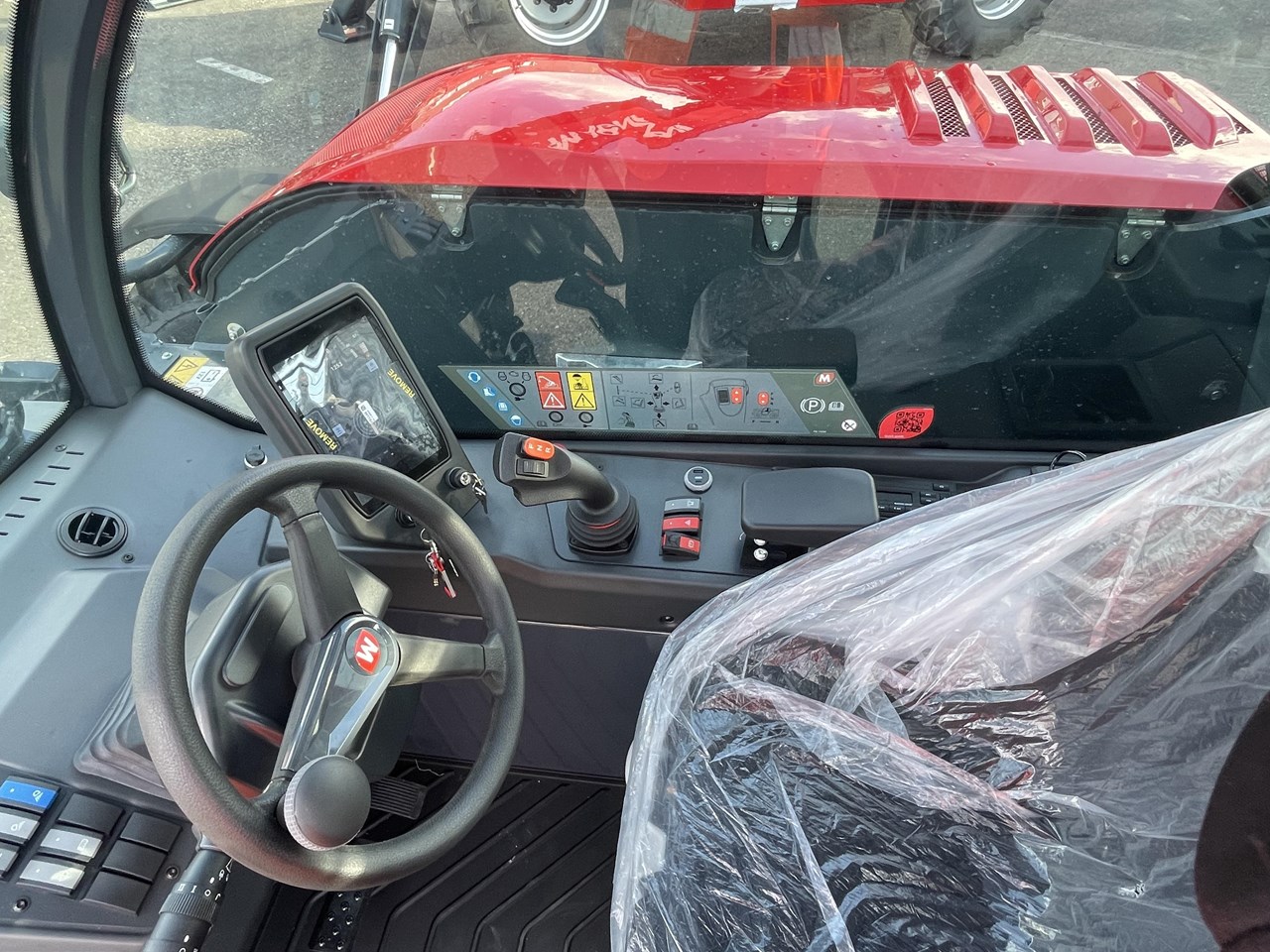

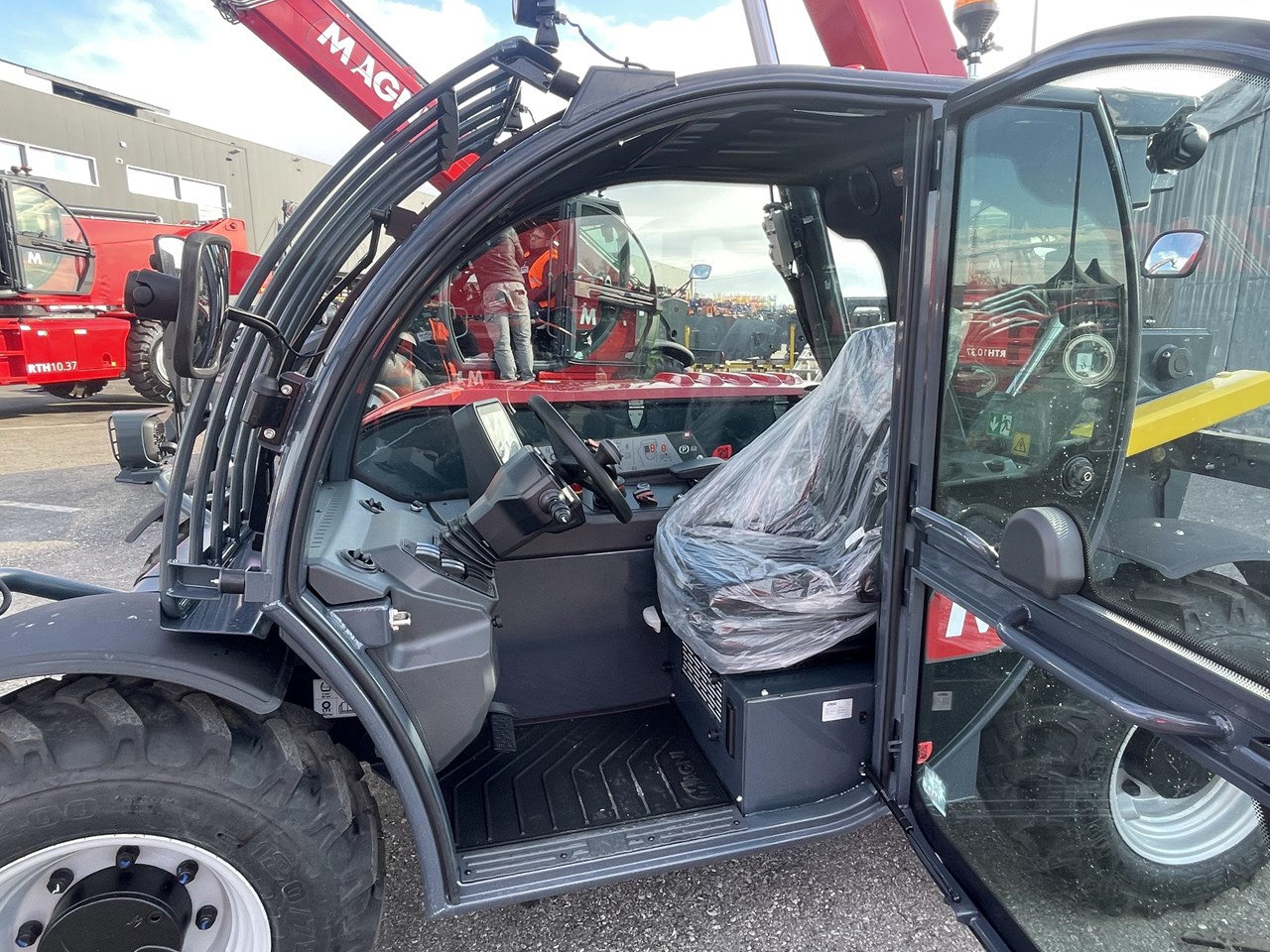

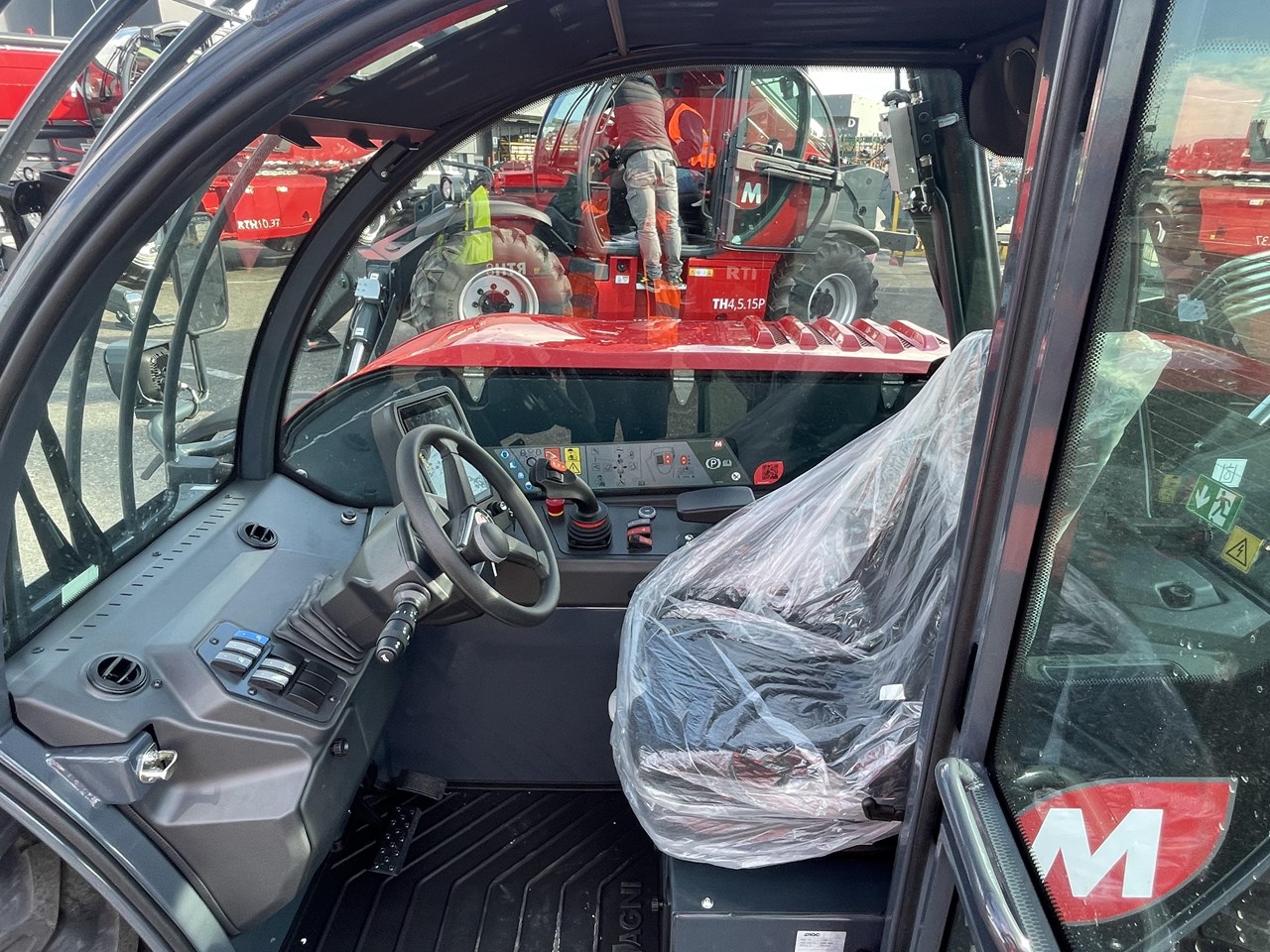

With the launch of the TH 3.6 Magni also presents the new compact cab, which maintains the same development approach as its predecessor in the TH range together with a new dashboard that optimises the user experience through the ergonomic placing of the main controls. It also features USB ports (3.0 and c-type) for charging electronic devices and a handy cup holder. The new cabs standard outfit is completed by the air-suspended seat, adjustable steering column, heating and radio.

Consulted via the 7 inch touch screen, the MCTS (Magni Combi Touch System) on-board software provides complete control of the machine with icon-based navigation. From the main menu, the operator can access the themed screens with the various functions, including load charts.

Specifications:
o Stabilizers: None
o Lifting capacity: 3,000 kg
o Capacity at maximum height: 2,500 kg
o Lifting height: 5.80 m
o Reach: 3.20 m
o Engine: Deutz TD 2,9 L4 EDG - Stage IIIA
o Rated power: 55 kW (75 hp)
o Number of gears: 2/2
o Hydraulic system: 260 bar (Load Sensing)
o Length: 3.79 m
o Width: 1.81 m
o Ground clearance: 380 mm
o Unladen weight: 4,850 kg
o Travel speed: 35 km/h
